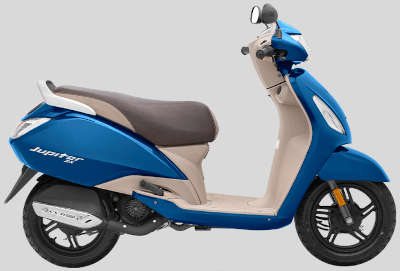

TVS Jupiter ZX Drum SmartXonnect (2023): Price, Features, Mileage & Specs

Type: Scooter
Company: TVS Motor Company
Model: TVS Jupiter ZX Drum SmartXonnect
Launch Date: August 3, 2023
Fuel: Petrol
Engine Type: Single cylinder, 4 stroke, CVTi, fuel injection
Power: 7.88 PS @ 7500 rpm
Colours: Pristine White, Mystic Grey, Midnight Black, Titanium Grey, Pristine White, Metallic Titanium Grey, Walnut Brown, New Metallic Red, Starlight Blue, Olive Gold, Starlight Blue, Metallic Blue, New Metallic Blue, Matte Black, Royal Wine, Regal Purple, Copper Bronze
Price: ₹ 82,200

Engine

Fuel: Petrol
Capacity: 6 Litres
Fuel System: Fuel Injection
Engine: Single cylinder, 4 stroke, CVTi, fuel injection
Displacement: 109.7 cc
Power: 7.88 PS @ 7500 rpm
Torque: 8.8 Nm @ 5500 rpm

* More torque means that the engine can produce more power and can accelerate more quickly.

Number of Cylinders: 1
Number of Valves/Cylinder: 2
Bore: 53.5 mm
Stroke: 48.8 mm
Transmission: Automatic
CVT (Continuously Variable Transmission)

* This is also known as Gearbox.

Drivetrain: Belt Drive

* This is a set of parts which transfer the engine power to the wheels so that the vehicle can drive.

Start Type: Kick and Self Start
Ignition: ECU Controlled ignition
Cooling System: Air Cooled
Emission Standard: BS6-2.0

Body

Body Type: Scooter
Length: 1834 mm
Width: 678 mm
Height: 1286 mm
Seat Height: 765 mm
Ground Clearance: 163 mm

* The minimum distance between the lowest part of the vehicle and the ground. A higher ground clearance is usually better.

Wheelbase: 1275 mm

* The distance between the centre of the front tyres and rear tyres. A longer wheelbase usually leads to a more comfortable and smoother ride.

Kerb Weight: 109 kg

* The weight of the vehicle including all the standard equipments and all the fluids required, like coolant, engine oil, transmission oil, brake fluid, 90% full fuel tank etc.

Tyres: Type: Tubeless
Size: Front : 90/90 - 12, Rear : 90/90 - 12
Radial Tyres: Yes

* In Tyre Size, the first number represents width of the tyre, the second number is the sidewall height of the tyre, as a percentage of the width i.e. if it is 80 then it means the sidewall height is 80% of the width. The third number represents the inner diameter of the tyre in inches.

Front Suspension: Telescopic Hydraulic

* The suspension system absorbs the impacts of the road and other bumps leading to a smoother and comfortable drive.

Rear Suspension: 3 step adjustable type coil spring with hydraulic damper

* The suspension system absorbs the impacts of the road and other bumps leading to a smoother and comfortable drive.

Wheels: Type: Alloy
Size: Front : 304.8 mm, Rear : 304.8 mm
Frame: High Rigidity Underbone Type

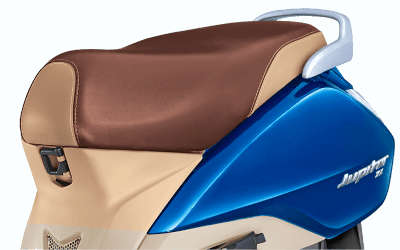

Seat Type: Single
Passenger: Backrest: Yes
Footrest: Yes
Storage: Boot Space: Yes
Storage Under the Seat: 21 litre
Additional Storage: 21 litre
Carrying Hook: Front & Rear
Lights: Head Lights: LED
Tail Lights: LED
Indicators: Bulb
External Fuel Cap: Yes
Colours: Pristine White, Mystic Grey, Midnight Black, Titanium Grey, Pristine White, Metallic Titanium Grey, Walnut Brown, New Metallic Red, Starlight Blue, Olive Gold, Starlight Blue, Metallic Blue, New Metallic Blue, Matte Black, Royal Wine, Regal Purple, Copper Bronze

Safety

Braking System: Synchronized Braking System
Front Brakes: Drum
Diameter: 130 mm
Rear Brakes: Drum
Diameter: 130 mm

Features

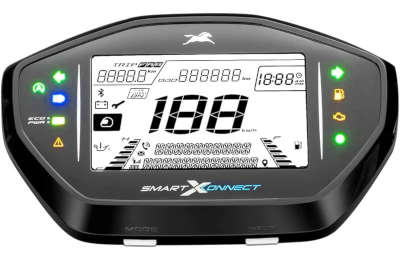

TVS Jupiter ZX Drum SmartXonnect Instruments — Credit: TVS Motor Company

Instrument Console: Digital
Speedometer: Digital
Odometer: Digital

* It measures the distance travelled by the vehicle.

Tachometer: Digital

* Also known as RPM gauge, it displays the revolutions per minute (RPM) of the moving vehicle.

Tripmeter: Digital

* This instrument can be used to record the distance of individual journeys.

Clock: Digital
Low Fuel Indicator: Yes
Shutter Lock: Yes
Navigation: Yes
Connectivity: Bluetooth
Alerts - Call/SMS: Yes
USB Charging: Yes
Pass Light Switch: Yes

* This is used to signal other vehicles about your vehicle so that the vehicle being passed and the oncoming traffic can be cautious.

Battery

Battery Type: Maintenance Free
Battery Capacity: 12 V / 4 Ah

Other Features

Mobile App: Yes
Misc: Air Filter Type - Viscous paper Filter, Stainless Steel Muffler Guard, SmartXonnect, TVS intelliGo, ETFi, Econometer, Intelligent Ignition System, Largest Leg Space - 375 mm, Least Turning Radius, i-Touchstart, All in one lock, Front Utility Box, Dual Side Handle Lock, Malfunction Indicator in Digital Cluster, Parking Brake, Voice Assist
Visit the official website for more information

Price

Price: ₹ 82,200

Warranty

Vehicle Warranty: 5 years (60 months)/50,000 km (whichever is earlier),

Petrol ETFi Front Drum Brakes Sync Braking Tech External Fuel Fill Rs.84468

Comments

To Post a comment:

Frequently Asked Questions (FAQ)

The price of TVS Jupiter ZX Drum SmartXonnect is ₹ 82,200. Do check the website of TVS Motor Company for the latest prices.

TVS Jupiter ZX Drum SmartXonnect is a Petrol Scooter.

The TVS Jupiter ZX Drum SmartXonnect is powered by Single cylinder, 4 stroke, CVTi, fuel injection, with a power of 7.88 PS @ 7500 rpm and torque of 8.8 Nm @ 5500 rpm.

TVS Jupiter ZX Drum SmartXonnect was launched on August 3, 2023.

TVS Jupiter ZX Drum SmartXonnect has a fuel capacity of 6 Litres.

The emission standard of TVS Jupiter ZX Drum SmartXonnect is BS6-2.0.

TVS Jupiter ZX Drum SmartXonnect has a length of 1834 mm, a height of 1286 mm, a width of 678 mm and a ground clearance of 163 mm.

TVS Jupiter ZX Drum SmartXonnect is available in Pristine White, Mystic Grey, Midnight Black, Titanium Grey, Pristine White, Metallic Titanium Grey, Walnut Brown, New Metallic Red, Starlight Blue, Olive Gold, Starlight Blue, Metallic Blue, New Metallic Blue, Matte Black, Royal Wine, Regal Purple, Copper Bronze colours.
