Category: SUV Brand: BYD (Build Your Dreams) Model: Atto 3 Launch Date: December 2022 (expected)

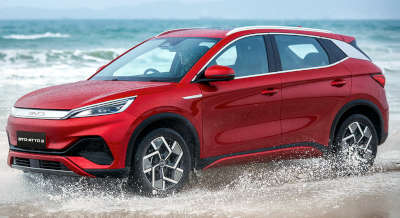

Body
Credit: BYD
Type: Electric SUV Dimensions: Length: 4455mm Width: 1875mm Height: 1615mm Ground Clearance: 175mm Wheelbase: 2720mm Turning Radius: 5.5m Weight: Kerb Weight: 1750 Kg Gross Weight: 2160Kg Frame: Steel structure - Body and Chassis Front Tyre: 215/55 R18 Rear Tyre: 215/55 R18 Front Suspension: Macpherson strut Rear Suspension: Multi link Steering: Electric power assisted steering Seat: Seating Capacity: 5 60/40 split fold rear seats Driver seat: Six way power adjustment Front passenger seat: Four way power adjustment Colours: Boulder Grey Parkour Red Ski White Surf Blue Misc: Aerodynamic with wind resistance coefficient of 0.29Cd Wheel track (front): 1575mm Wheel track (rear): 1580mm Alloy wheels Sports Wheelhub

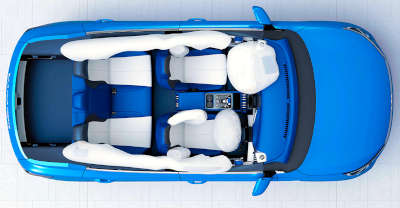

Safety
Credit: BYD
Safety Features: Seven Airbags Dual Front Airbags (Driver and front passenger) Side Airbags (Driver and front passenger) Side Curtain Airbags (front and rear) Far side airbag (Driver) ABS (Anti Lock Braking System) with EBD (Electonic Brake Distribution) ESP (Electronic Stability Programme) with Hill Descent Control (HDC) ISOFIX Child Seat Anchorage for outer rear seats Seat Belt Reminder: front and rear Load limit pretensioner safety belts Front Brakes: Ventilated discs Rear Brakes: Discs Reverse Parking: Front parking sensors (Front collision warning) Rear parking sensors (Rear collision warning) 360° monitor: 360° Holographic transparent imaging system Misc: Tyre Pressure Monitoring System (TPMS) Front two radars Rear two radars Auto hold
Electric parking brake system (EPB) Traction control system (TCS) Stop and Go Full speed Adaptive Cruise Control (ACC - S&G) Automatic Emergency Braking System (AEB) Blind spot detection (BSD) Door open warning Lane departure warning Rear cross traffic warning Rear cross traffic brake DiPilot

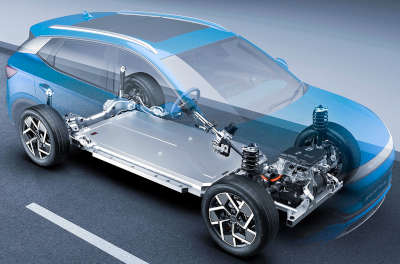

Engine
Credit: BYD
Fuel Type: Electric Power: 150 kW (201.15hp) Torque: 310 Nm Transmission: Automatic Pickup: 0 to 100 Km/h: 7.3 seconds Start/Stop: Keyless start Mileage/Range: 521 Km: ARAI - from 100% to 5% 480 Km (NEDC - New European Driving Cycle) Misc: Motor type: Permanent magnet synchronous motor Push type electronic gear lever Regenerative Braking

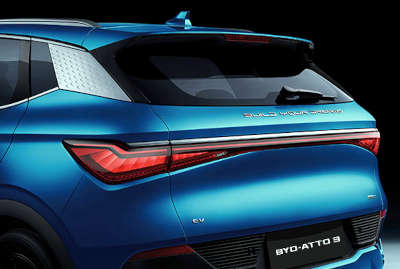

Exterior Features
Credit: BYD
Headlamps: Crystal LED combination headlights One piece through LED headlight strip Daytime Running Lamps: LED DRL Outside Rear View Mirror: Electrically heated and adjustable, electrically retractable Tail Lamps: One piece through LED Taillight strip Misc: Panoramic sunroof with electric slide and anti-pinch: 1261mm long and 849mm wide, extends upto second row Roof rails Follow me home headlamps Adaptive front lighting Four door window: one touch up-down with anti-pinch Ripple D pillar

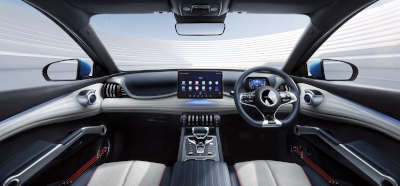

Interior Features
Credit: BYD
Multi Information Display: 5 inch (12.7cm) digital instrument panel Misc: 60/40 split fold rear seats Boot space: 440 Liters Boot space (maximum): 1340 Liters Electric unlock Tailgate One touch open/close Tailgate Multi colour gradient ambient lighting Door handle: Multi colour ambient lighting with music rhythm Grip style door handles Door trim with strings

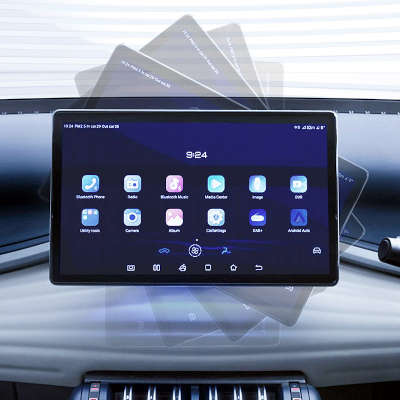

Infotainment System
Credit: BYD
Type: 12.8 inch (32.5cm) intelligent rotating touch screen Controls: Steering mounted controls Connectivity: Bluetooth phone connectivity and audio streaming USB port Type-C and USB A port in front USB port Type-C and USB A port in rear Speakers: Eight speakers Misc: FM Radio Apple CarPlay Android Auto Voice assistant English Centre console

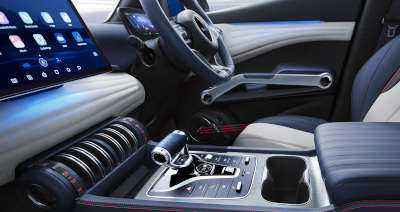

Comfort
Credit: BYD
Air Conditioner: Automatic air conditioning Heat pump Arm Rest: Treadmill style central armrest Misc: CN95 air filter PM 2.5 air filter Wireless phone charger 12V socket Portable card key (NFC card key) Central console storage compartment Dumbbell style AC vents

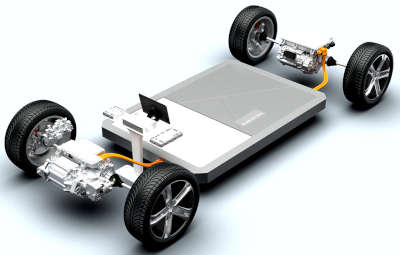

Battery
Credit: BYD
Capacity: 60.48 kWh Type: BYD Blade Battery: LFP (Lithium Iron phosphate) Misc: Charging time: 50 minutes (DC, from 0 to 80%) Charging time: 9.5 to 10 hours (AC) AC charging port: Type 2 DC charging port: ccs2 (80kW) VOTL (Vehicle To Load) mobile power supply function: allows vehicle to be transformed into a power bank which can supply power upto 3.3kW to operate electrical appliances Blade battery has passed the Nail penetration test: Blade battery emits neither smoke nor fire after being penetrated and the surface temperature only reached 30°C to 60°C Blade battery strength test: Battery was undamaged after a 46 Ton truck drove over it Blade battery can support mileage of more than 5,00,000 Km Battery standard: UN38.3 and ECE R100
Other Features
Born EV Platform: e-Platform 3.0 - integrated with Blade battery, 8-in-1 high effieciency electric powertrain, Wide temperature range high efficiency heat pump system and other core technologies
Effieciency: 8-in-1 High efficiency electric powertrain with motor, motor controller, reducer, onboard charger, DC converter, high voltage distribution box, vehicle controller and BMS (Battery Management System) integrated in one causing the overall efficiency to reach upto 89% Wide temperature range high efficiency heat pump system increases thermal efficiency by upto 20% while reducing energy loss, can work in temperature range of -30°C to 60°C
Intelligent: e-Platform 3.0 integrates the driving, braking and steering system
BYD Operating System Dragon Face 3.0 family design Tyre repair kit For more information, visit the official BYD Auto website
Price
₹ 30,00,000 (expected)
Warranty
Whichever comes earlier: Traction Battery: Eight years/1,60,000Km Motor and Motor Controller: Eight years/1,50,000Km DC-DC Assembly, High voltage electric control assembly, OBC (On Board Charging): Six years/1,50,000Km Whole vehicle lights, Tyre pressure monitoring module, Suspension, Ball joint: Three years/1,25,000Km Multimedia system, Shock absorber, Dust cover, Release bearing, Wheel bearing, PM2.5 measurement instrument, AC/DC charging port assembly, USB charging port connector: Three years/1,25,000Km 12V Auxiliary battery, Tyres, Bushing or Gasket: One Year/20,000Km All parts except those listed above (not including various oil, charging equipment, gifts, refrigerants etc): Six years/1,50,000Km
