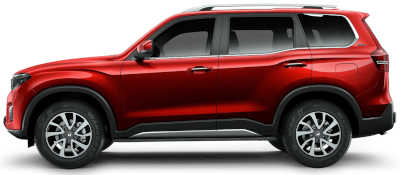

Mahindra Scorpio N Z4 Diesel 2WD MT | Ultraviolette F77 Laser | |
---|---|---|
![]() |
![]() |
|
Body Type | SUV | Electric Bike |
Dimensions | Length: 4662mm Width: 1917mm Height: 1857mm |
Length: Width: Height: |
Ground Clearance | 187mm | - |
Wheelbase | 2750mm | 1340mm |
Turning Radius | - | - |
Weight | Gross Weight: 2510 Kg | Kerb Weight: 158Kg |
Frame | Body on Frame or Ladder Frame Chassis | Steel trellis with aluminium bulk head |
Front Tyre | 245/65 R17 | 110/70 R17 |
Rear Tyre | 245/65 R17 | 150/60 R17 |
Fuel Tank Capacity | 57 Liters | - |
Front Suspension | Double Wishbone Suspension with Coil over Shocks with FDD (Frequency Dependent Damping) and MTV-CL (Multi-Tuned Valve Central Land) | Inverted cartridge type forks |
Rear Suspension | Pentalink Suspension with WATTs Linkage with FDD (Frequency Dependent Damping) and MTV-CL (Multi-Tuned Valve Central Land) | 12mm piston with Gas charged adjustable preload spring, Glass hot red colour |
Steering | Hydraulic Power Steering with Tilt Function | - |
Seat | Seating Capacity: 7 Second Row One Touch Tumble (LH) and Third Row Fold and Tumble Seat Height Adjust with Lumbar Support |
Seating Capacity: 2 Seat Height: 800mm |
Colours | Dazzling Silver Deep Forest Grand Canyon Everest White Napoli Black Red Rage Royal Gold |
Crimson |
Body Misc | - | Rake: 23.5° Trail: 89mm Chassis colour: Matte Black Side stand: Forged aluminium integrated sidestand Aluminium rim colour: Slate Grey Crash guard: Matte Black |
Safety Features | Dual Front AirBags ABS (Anti Lock Braking System) with EBD (Electonic Brake Distribution) ISOFIX/ i-SIZE compatability for child protection |
Dual channel ABS (Antilock Braking System) |
Front Brakes | Ventilated Disc Brake | Brake Calipers: Fixed four radial piston Brake System: Hydraulic disc brake with dual channel ABS Brake Rotor: 320mm drilled hole disc |
Rear Brakes | Ventilated Disc Brake | Brake Calipers: Single piston floating caliper Brake System: Hydraulic disc brake with dual channel ABS Brake Rotor: 230mm drilled hole disc |
Reverse Parking | Rear Parking Sensors | Park assist reverse |
Fog Lamps | No | - |
Braking Distance | - | - |
Safety Misc | - | Brake fluid hose: Braided metal hose Sidestand sensor Fall and Crash sensor Rear and front flashers hazard light Emergency contact alert Lock down mode |
Fuel Type | Diesel | Electric |
Fuel System | Common Rail Direct Injection | - |
Displacement | 2198 cc | - |
Bore x Stroke | - | - |
Compression Ratio | - | - |
Power | 97kW (130hp) @3750 rpm | Maximum power output: 25,000W (33.52hp) @2250rpm |
Torque | 300 Nm @ 1500-3000 rpm | Motor: 90Nm Wheel: 450Nm |
Transmission | 6MT (Manual Transmission) | 46T/14T 520 X-Ring chain drive |
Pickup | - | 0 to 60 Km/h: 2.9 seconds 0 to 100 Km/h: 7.5 seconds |
Number of Cylinders | 4 | - |
Number of Valves | 4 valves per cylinder | - |
Valvetrain Type | DOHC (Dual Overhead Camshaft) | - |
Drivetrain | Rear Wheel Drive, 2 Wheel Drive | - |
Exhaust System | - | - |
Emissions | BS VI | - |
Start/ Stop | Engine Start/Stop | - |
Mileage/ Range | 16.36 Km/L | 307 Km (updated) |
Engine Misc | Diesel Gen II mHawk Engine | Maximum speed: 147 Km/h Throttle control: Dual hall effect sensor with zero position micro switch Motor controller: High efficiency and power dense 550A 3 phase AC controller Gear box: Single reduction helical gear box Motor: Passively air-cooled interior Permanent magnet AC motor Variable regenerative braking Drive modes:
|
Headlamps | Dual Barrel MFR (Multi Faceted Reflector) Headlamps | LED Headlight with Ultra-V position light |
DRL | No | - |
ORVM | Electrically Adjustable | - |
Tail Lamps | Tall Stacked LED Tail Lamps | Dual LED light sets with central LED brake light |
Indicators | LED Turn Indicator in ORVM | Front turn signals: LED |
Exterior Misc | Skid Plates Steel Wheels with Wheel cover Silver Front Grille Ski Rack: Black finish Rear Spoiler |
Handle bar switches: Matte Black, Electric micro switch with LED backlight |
MID | 10.66cm monochrome instrument cluster | - |
IRVM | Day and Night Adjustable | - |
Interior Misc | Roof Lamp for first and second row | - |
Infotainment Type | Touchscreen | Dashboard: UV Automotive Linux OS LightSpeed Drive Interface Ultra high brightness Automotive TFT LCD |
Infotainment Controls | Steering Mounted Audio and Cruise Controls | 5-way dashboard control pad |
Connectivity | Android Auto and Apple CarPlay compatability (wired) USB Read and Charge Bluetooth AM/FM Radio |
Bluetooth and NFC: 256 bit encryption |
Speakers | 4 Speakers | - |
Infotainment Misc | - | iOS and Android smartphone app USB phone charging interface |
AC | Yes Second Row AC: Vent and Module Activated Carbon Filter |
- |
Armrest | Yes | - |
Comfort Misc | Cooled Glovebox Activated Carbon Filter Power Windows with Anti-Pinch (Driver Side) Seat Height Adjust with Lumbar Support Rear Wiper, Washer and Demister |
- |
Battery Capacity | 65Ah | 4.2 kWh |
Battery Type | - | Lithium ion |
Battery Misc | - | 3 x modular Li ion battery Charge time: 5 hours (standard), 1.5 hours (Fast charging) 10th generation BMS (Battery Management System) Adaptive SoC (State of Charge) estimation State of Health estimation algorithms MIL-STD Rugged Battery Modules CCS charge port Charger Type: 1kW standard vehicle mounted charger, 3kW portable charger Thermal Management: Proprietary heat dissipation technology Extended temperature range protection Bi-directional IP67 high current battery connector Proprietary patented battery safety system |
Other Features | Engine equipped with Shift by Cable Technology Upto 786 Liters Boot Space after folding the second and third row seats For more information, visit the official Mahindra & Mahindra website |
Smart Features:
BLS4 Automated Battery Control System:
Accessories:
|
Price | ₹ 13,99,000 as on 12 October 2022 | ₹ 3,50,000 (expected) |
Warranty | Two Years/75,000 Km (whichever is earlier) | - |
