Tesla Model Y Rear Wheel Drive

Category: SUV
Brand: Tesla
Model: Model Y Rear Wheel Drive
Launch Date: December 2022
Features:

• Range: 455km (WLTP)
• Top Speed: 217km/h
• Pickup: 0-100km/h in 6.9 seconds
• 15 inch center touchscreen

Body

Type: SUV
Dimensions: Length: 4751mm
Width: 2129mm (including mirrors), 1978mm (including folded mirrors), 1921mm (without mirrors)
Height: 1624mm
Ground Clearance: 172mm
Wheelbase: 2890mm
Turning Radius: 6.065m
Weight: Weight: 1909 kg
Front Tyre: 255/45 R19 or 255/40 R20
Rear Tyre: 255/45 R19 or 255/40 R20
Front Suspension: Independent, double wishbone, coil spring/telescopic damper, sway bar
Rear Suspension: Independent, multi-link, coil spring/telescopic damper
Steering: Rack and pinion with electronic power steering
Speed sensitive
Number of turns lock to lock: 2.00
Height/ Tilt angle adjustable
Heated steering wheel
Seat: Seating Capacity: 5
60/40 split fold rear seats
Front seats: Integrated head rests
Rear seats: Adjustable head rests
Heated front and rear seats
Power adjustable front seats
Colours: Pearl White multi coat
Solid Black
Midnight Silver metallic
Deep Blue metallic
Red multi coat
Misc: Front overhang: 875mm
Rear overhang: 986mm
Front track: 1646mm
Rear track: 1630mm
Front trunk: 117 liters
Cargo volume behind second row: 854 liters
Maximum total cargo volume with 5 passengers: 971 liters
2158 liters of storage space accessible through the front and rear trunk

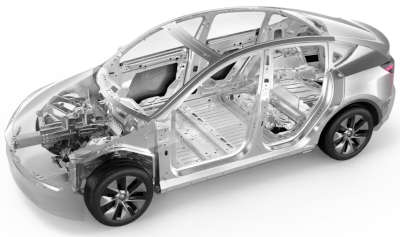

Safety

Safety Features: 6 Airbags: Dual front airbgs, Seat mounted side airbags, Curtain airbags
4 wheel anti-lock braking system (ABS)
EBD (Electronic brake force distribution)
Integrated advanced stability control
Electronic accelerator pedal actuated regenerative braking system
Traction control
Front Brakes: Disc
Rear Brakes: Disc
Reverse Parking: Park assist - visual and audio feedback
Fog Lamps: LED fog lamps
Misc: NHTSA 5 star safety rating
Automatic emergency braking
Blind spot monitoring
Front collision warning
Side collision warning
Emergency lane departure avoidance and correction
Obstacle aware acceleration
Sentry mode
Cabin overheat protection
360° visibility with rear, side and forward facing cameras
Visual processing at upto 250 meters of range
Tesla Vision: detects nearby cars, helps prevent potential collisions, assists with parking
In-app vehicle location monitoring
ISOFIX
TPMS (Tyre Pressure Monitoring System)
Brakes:

• Brake Disc Wiping
• Hydraulic fade compensation
• Hydraulic boost compensation
• Front calipers: Four piston, fixed
• Rear calipers: Integrated electronic parking brake sliding
• Rotor diameter (ventilated): Front - 14inch/355mm, Rear - 13.2 inch/335mm
• Front rotor thickness: 0.98 inch/ 25mm
• Rear rotor thickness: 0.79 inch/ 20mm
• Lateral runout: 0.050mm
• Chordal runout: 0.040mm
• Disc thickness variation (DTV): 0.010mm
• Front brake pad thickness (excluding back plate): 0.393inch/ 10mm
• Rear brake pad thickness (excluding back plate): 0.354inch/ 9mm
• Parking brake: Electrically actuated parking brake integrated into rear caliper

Engine

Fuel Type: Electric
Power: 295 hp
Torque: 430 Nm
Transmission: Single speed fixed gear
Gearbox ratio: 9:1
Pickup: 0-100 km/h in 6.9 seconds
Drivetrain: Rear wheel drive
Exhaust Type: Zero Tailpipe Emission
Emissions: Zero emission vehicle (ZEV)
Start/Stop: Opening the door turns on the touchscreen and instrument panel
Mileage/Range: 430 km (WLTP)
Misc: Rear motor:

• AC PMSM (permanent magnet synchronous motor)
• Liquid cooled
• Variable frequency drive

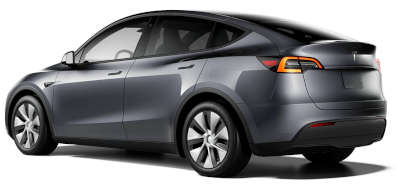

Exterior Features

Headlamps: LED, Auto headlights, Signature lights - series of LED lights along the rim of headlights
Daytime Running Lamps: LED DRL
Outside Rear View Mirror: Electrically operated with auto fold, auto tilt when backing, auto dimming, power folding, heated
Tail Lamps: Auto tail lights
Indicators: Yes
Misc: Full glass roof with infrared and ultraviolet light blockage

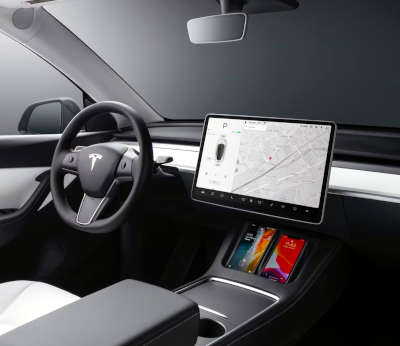

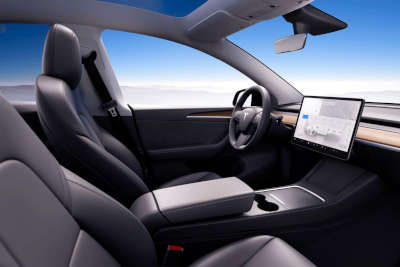

Interior Features

Multi Information Display: 15 inch touchscreen in the center functions as MID
Internal Rear View Mirror: Auto Dimming
Misc: Ultraviolet and infrared protection on all glass

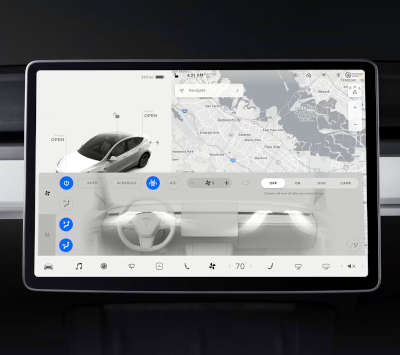

Infotainment System

Type: 15 inch touchscreen
Controls: Steering mounted controls
Connectivity: Bluetooth
USB
Wifi
Speakers: Premium audio with 13 speakers, 1 subwoofer, 2 amps and immersive sound
Misc: Wireless smartphone charger in center console for two phones
Voice commands
Two USB-C charging ports in the front and rear
USB-A port in the glovebox with a 128GB portable storage device included
Standard connectivity: includes navigation, at no additional cost for eight years
Premium connectivity: includes navigation, live traffic visualization, satellite view maps, video streaming, music streaming, caraoke, internet browser, available free of cost for the first 30 days, then available on subscription basis

Comfort

Air Conditioner: Fully automatic temperature control
HEPA filtration system
Arm Rest: Front armrest
Rear armrest with cup holders
Misc: Autopilot: enables car to automatically steer, accelerate and brake within its lane, under driver’s active supervision
Navigate on Autopilot: active guidance from on-ramp to off-ramp
Auto lane change: automatically changes lanes while driving on the highway
Summon: automatically retrieve your car
Autopark: Parallel park and perpendicular park with a single touch
Automatic opening and closing rear liftgate
Location aware automatic garage door opener
Phone key

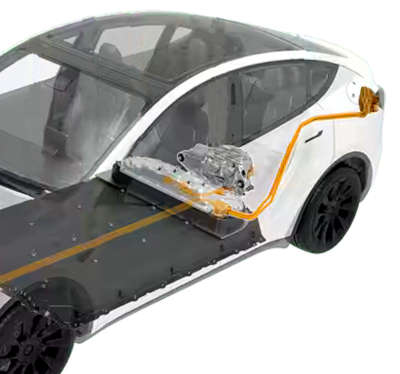

Battery

Capacity: 60 kWh
Type: Liquid cooled Lithium ion
Misc: High voltage battery:

• Voltage: 360V DC
• Temperature range: -30° to 65°

Low voltage battery:

• Rating: 33 Ah or higher
• Voltage and polarity: Low voltage negative ground

Supercharging max: 250 kW
Upto 270 km range in just 15 minutes on Tesla’s supercharger network
Wall connector: charging speeds upto 70km of range added per hour, 24 ft cable
Mobile connector: Using 110V it can povide upto 4.8km range per hour, using 240V outlet, it provides upto 48km range per hour

Other Features

Full self driving capability as an add-on
Tesla mobile app:

• Phone key keyless driving
• Range and charging status
• Climate control
• Live GPS location
• Schedule service
• Monitor entire Tesla ecosystem including power flow from Powerwall or from Solar Roof and Solar Panels

OTA updates
For more information, visit the official Tesla Model Y website
