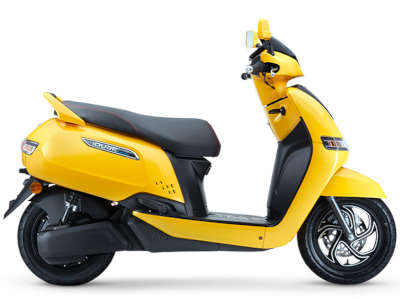

TVS iQube S

Category: Electric Scooter
Brand: TVS Motor Company
Model: TVS iQube S
Launch Date: 18 May 2022

Body

Type: Electric Scooter
Dimensions: Length: 1805mm
Width: 645mm
Height: 1140mm
Ground Clearance: 157mm
Wheelbase: 1301mm
Weight: Weight: 118.8 Kg
Frame: Tubular Structure
Front Tyre: 90/90 R12 Tubeless
Rear Tyre: 90/90 R12 Tubeless
Front Suspension: Telescopic
Rear Suspension: Adjustable, Hydraulic Twin Tube Shock Absorber
Seat: Seating Capacity: 2
Seat Height: 770mm
Colours: Lucid Yellow
Mercury Grey
Mint Blue
Copper Bronze Glossy

Safety

Safety Features: Front Disc Brake, Rear Drum Brake
Front Brakes: Disc brake, Diameter 220mm
Rear Brakes: Drum brake, Diameter 130mm
Reverse Parking: Reverse/ Forward parking assist
Misc: Parking brake lever

Engine

Fuel Type: Electric
Power: Peak power: 4.4kW (5.90hp)
Rated power: 3kW (4.02hp)
Torque: Peak torque: 140Nm
Rated torque: 33Nm
Transmission: Automatic
Pickup: 0 to 40 Km/h: 4.2 seconds
Mileage/Range: Economy range: 100 Km
Power range: 75 Km
Misc: Top Speed 78 Km/h
Gradeability: 10 degree

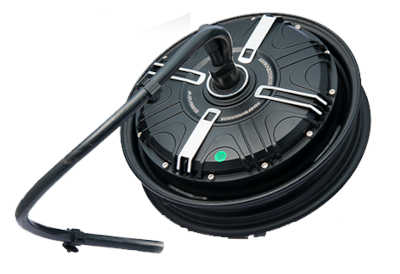

Traction motor type: BLDC (Brushless Direct Current) hub mounted
Regenerative Braking: Enabled

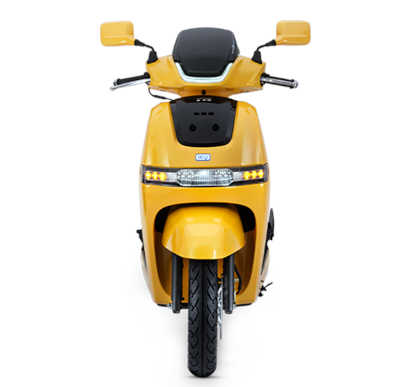

Exterior Features

Headlamps: LED Headlight integrated with TSL (Turn Signal Lamp)
Daytime Running Lamps: Yes
Tail Lamps: LED Tail Lamp integrated with TSL (Turn Signal Lamp)
Indicators: Integrated with headlamp and tail lamp
Misc: Number plate lamp: LED
Signature position lamp: LED
Illuminating Logo: LED

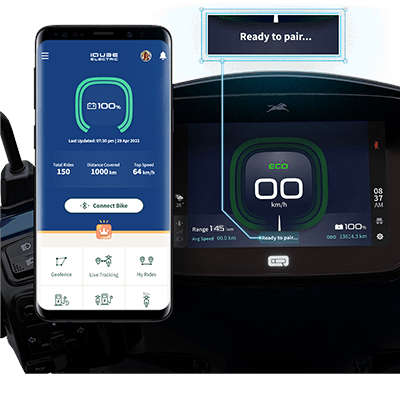

Infotainment System

Type: 17.78cm TFT screen
Controls: 5 way joystick
Connectivity: Bluetooth: via mobile app
GSM: via server
Misc: Resolution: 800 x 480 ppi (pixels per inch)
Brightness: 1000 lux
Automatic Day/Night Mode: Enabled
Over The Air Updates: Telematics
Cluster Features:

• Turn by Turn navigation: via mobile app
• Incoming call alert
• Side stand indication
• Battery level and low battery indicator
• DTE (Distance to Empty)
• Park assist/Reverse assist indicator
• Music control
• Incognito mode

Telematics Features:

• Geo fencing
• Anti theft alert
• Live location status

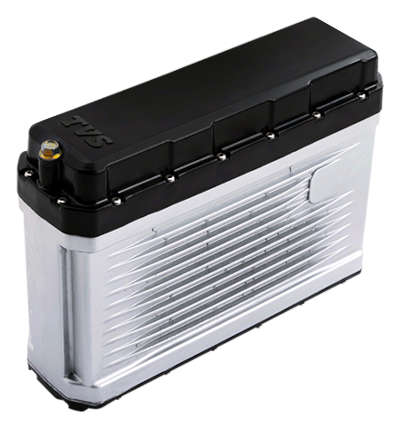

Battery

Capacity: Usable Capacity: 3.04 kWh
Type: Lithium ion
Misc: Two Lithium ion battery packs encased in high strength aluminium extrusion casing
Water and Dust Resistance: IP67
Rated Voltage: 52V
Safety: BMS (Battery Management System) controlled protection system
Charging duration: 4hours 30minutes (650W)
Plugin charger type: Offboard charger
Spike protection enabled

Other Features

17 Liters storage
Flip key with LED light
USB charger
Pleasant horn tone
Crash Alert
Service Alert
Proactive diagnosis
Music Player
Social media apps
Incoming calls and sms
On board navigation assist
Last parked location
For more information, visit the official TVS Motor Company website

Price

₹ 1,12,238 (Udaipur, Rajasthan) as on 19 October 2022

Warranty

Vehicle and Battery: Three Years/50,000 Km
SmartXHome Charger Warranty: Three Years
Portable Charger Warranty: Six months
