TVS iQube ST

TVS iQube ST
Credit: TVS Motor Company
Category: Electric Scooter
Brand: TVS Motor Company
Model: TVS iQube ST
Launch Date: 18 May 2022

Body

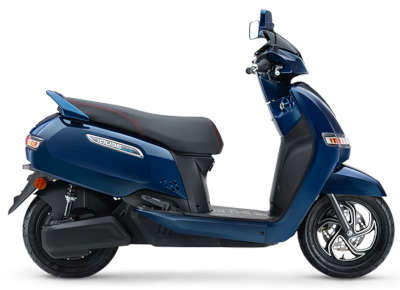

TVS iQube ST
Credit: TVS Motor Company
Type: Electric Scooter
Dimensions: Length: 1805mm
Width: 645mm
Height: 1140mm
Ground Clearance: 157mm
Wheelbase: 1301mm
Weight: Weight: 128 Kg
Frame: Tubular Structure
Front Tyre: 90/90 R12 Tubeless
Rear Tyre: 90/90 R12 Tubeless
Front Suspension: Telescopic
Rear Suspension: Adjustable, Hydraulic Twin Tube Shock Absorber
Seat: Seating Capacity: 2
Seat Height: 770mm
Colours: Starlight Blue
Titanium Grey Matte
Coral Sand
Copper Bronze Matte

Safety

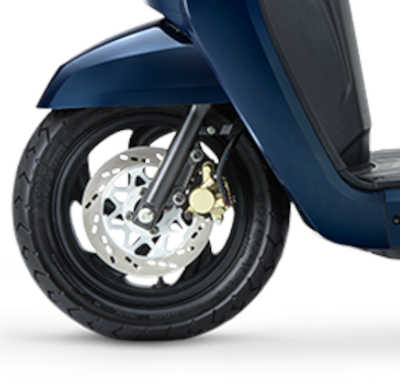

TVS iQube ST
Credit: TVS Motor Company
Safety Features: Front Disc Brake, Rear Drum Brake
Front Brakes: Disc brake, Diameter 220mm
Rear Brakes: Drum brake, Diameter 130mm
Reverse Parking: Reverse/ Forward parking assist
Misc: Parking brake lever

Engine

TVS iQube ST
Credit: TVS Motor Company
Fuel Type: Electric
Power: Peak power: 4.4kW
Rated power: 3kW
Torque: Peak torque: 140Nm
Rated torque: 33Nm
Transmission: Automatic
Pickup: 0 to 40 Km/h: 4.2 seconds
Mileage/Range: Economy range: 145 Km
Power range: 110 Km
Misc: Top Speed 82 Km/h
Gradeability: 10 degree
Traction motor type: BLDC (Brushless Direct Current) hub mounted
Regenerative Braking: Enabled

Exterior Features

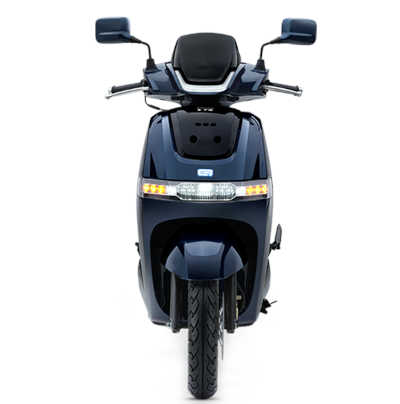

TVS iQube ST
Credit: TVS Motor Company
Headlamps: LED Headlight integrated with TSL (Turn Signal Lamp)
Daytime Running Lamps: Yes
Tail Lamps: LED Tail Lamp integrated with TSL (Turn Signal Lamp)
Indicators: Integrated with headlamp and tail lamp
Misc: Number plate lamp: LED
Signature position lamp: LED
Illuminating Logo: LED

Infotainment System

TVS iQube ST
Credit: TVS Motor Company
Type: 17.78cm TFT screen
Controls: 5 way joystick and touchscreen
Connectivity: Bluetooth: via mobile app
GSM: via server
Misc: Resolution: 800 x 480 ppi (pixels per inch)
Brightness: 1000 lux
Automatic Day/Night Mode: Enabled
Over The Air Updates: Telematics, VCU (Vehicle Control Unit), BMS (Battery Management System), Cluster
Cluster Features:
  • Turn by Turn navigation: via mobile app
  • Incoming call alert
  • Side stand indication
  • Battery level and low battery indicator
  • DTE (Distance to Empty)
  • Park assist/Reverse assist indicator
  • Music control
  • Incognito mode
Telematics Features:
  • Geo fencing
  • Anti theft alert
  • Live location status

Battery

TVS iQube ST
Credit: TVS Motor Company
Capacity: Usable Capacity: 4.56 kWh
Type: Lithium ion
Misc: Two Lithium ion battery packs encased in high strength aluminium extrusion casing
Water and Dust Resistance: IP67
Rated Voltage: 52V
Safety: BMS (Battery Management System) controlled protection system
Charging duration: 4hours 6minutes (950W), 2hours 30minutes(1500W)
Plugin charger type: Offboard charger
Spike protection enabled

Other Features

Alexa Integration
Remote vehicle immobilization
Keyless unlocking
32 Liters storage
Flip key with LED light
USB charger
Pleasant horn tone
Crash Alert
Service Alert
Proactive diagnosis
Music Player
Social media apps
Incoming calls and sms
On board navigation assist
Last parked location
For more information, visit the official TVS Motor Company website

Warranty

Vehicle and Battery: Three Years/50,000 Km
SmartXHome Charger Warranty: Three Years
Portable Charger Warranty: Six months
