Category: Electric Bike Brand: Ultraviolette Model: F77 Shadow Launch Date: 24 November 2022 (expected)
Body

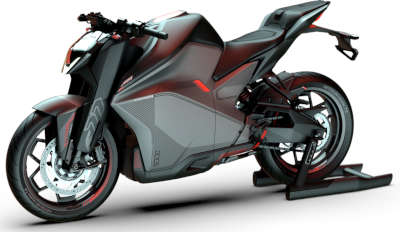

Type: Electric Bike Dimensions: Length: Width: Height: Wheelbase: 1340mm Weight: Kerb Weight: 158Kg Frame: Steel trellis with aluminium bulk head Front Tyre: 110/70 R17 Rear Tyre: 150/60 R17 Front Suspension: Inverted cartridge type forks Rear Suspension: 12mm piston with Gas charged adjustable preload spring, Glass hot red colour Seat: Seating Capacity: 2 Seat Height: 800mm Colours: Stealth Grey Misc: Rake: 23.5° Trail: 89mm Chassis colour: Matte Black Side stand: Forged aluminium integrated sidestand Aluminium rim colour: Slate Grey Crash guard: Matte Black
Safety
Credit: Ultraviolette
Safety Features: Dual channel ABS (Antilock Braking System) Front Brakes: Brake Calipers: Fixed four radial piston Brake System: Hydraulic disc brake with dual channel ABS Brake Rotor: 320mm drilled hole disc Rear Brakes: Brake Calipers: Single piston floating caliper Brake System: Hydraulic disc brake with dual channel ABS Brake Rotor: 230mm drilled hole disc Reverse Parking: Park assist reverse Misc: Brake fluid hose: Braided metal hose Sidestand sensor Fall and Crash sensor Rear and front flashers hazard light Emergency contact alert Lock down mode
Engine
Credit: Ultraviolette

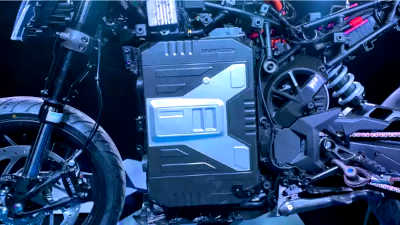

Fuel Type: Electric Power: Maximum power output: 25,000W (33.52hp) @2250rpm Torque: Motor: 90Nm Wheel: 450Nm Transmission: 46T/14T 520 X-Ring chain drive Pickup: 0 to 60 Km/h: 2.9 seconds 0 to 100 Km/h: 7.5 seconds Mileage/Range: 307 Km (updated) Misc: Maximum speed: 147 Km/h Throttle control: Dual hall effect sensor with zero position micro switch Motor controller: High efficiency and power dense 550A 3 phase AC controller Gear box: Single reduction helical gear box Motor: Passively air-cooled interior Permanent magnet AC motor Variable regenerative braking Drive modes:
Eco mode
Sport mode
Insane mode
Exterior Features
Credit: Ultraviolette
Headlamps: LED Headlight with Ultra-V position light Tail Lamps: Dual LED light sets with central LED brake light Indicators: Front turn signals: LED Misc: Handle bar switches: Matte Black, Electric micro switch with LED backlight
Infotainment System
Credit: Ultraviolette

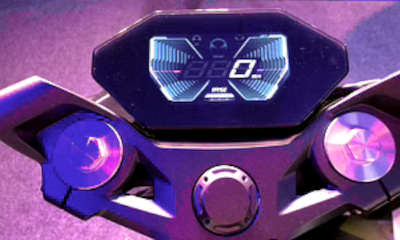

Type: Dashboard: UV Automotive Linux OS LightSpeed Drive Interface Ultra high brightness Automotive TFT LCD Controls: 5-way dashboard control pad Connectivity: Bluetooth and NFC: 256 bit encryption Misc: iOS and Android smartphone app USB phone charging interface
Battery
Credit: Ultraviolette

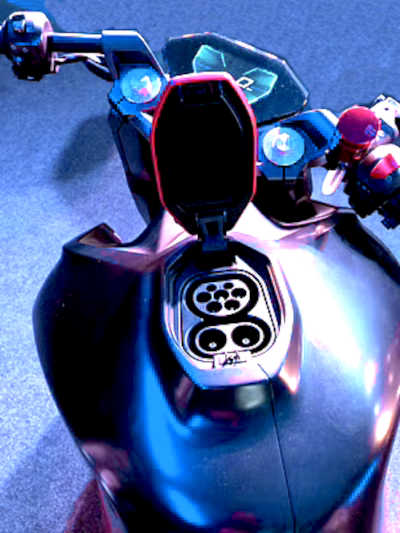

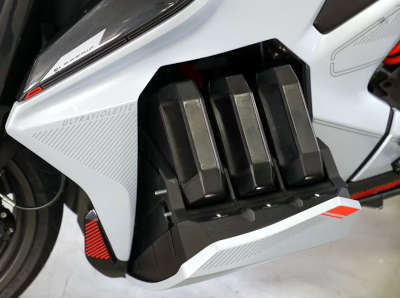

Capacity: 4.2 kWh Type: Lithium ion Misc: 3 x modular Li ion battery Charge time: 5 hours (standard), 1.5 hours (Fast charging) 10th generation BMS (Battery Management System) Adaptive SoC (State of Charge) estimation State of Health estimation algorithms MIL-STD Rugged Battery Modules CCS charge port Charger Type: 1kW standard vehicle mounted charger, 3kW portable charger Thermal Management: Proprietary heat dissipation technology Extended temperature range protection Bi-directional IP67 high current battery connector Proprietary patented battery safety system
Other Features
Smart Features:
LTE connectivity with 2G, 3G: Fallback and integrated eSIM
Temperatue, Voltage and Current sensors with active tracking and efficiency mapping across the vehicle
Shock and Impact sensors for fall and crash detection
Customisable performace profiles
Adaptive dashboard brightness with ALS (Ambient Light Sensor)
9 axis IMU (Inertia Measurement Unit) for Ride analytics with built in accelerometer, gyroscope, magnetometer and Sensor Fusion technology
